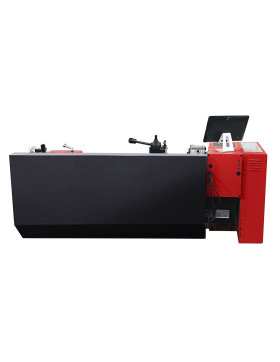

Metalldrehmaschine SC4-PRO , Spitzenweite 510 mm, 1000 Watt

Item number: 1831024


2.533,49 €

including 16% VAT., no shipping costs (Spedition)

Recommended retail price: 2.699,00 €
(You save 6.13%, that is 165,51 €)

Not available now!

Category: Sieg lathe machine SC4 Pro



Description

Bench Lathe SC4

with automatic crossfeed and longitudinal feed

Bench late with 510 mm distance between centers and 105 mm swing over bed.

NEW brushless motors with 1 KW drive power! resulting in maximum torque and quiet operation in all speed ranges

The combination of brushless DC motor, advanced electronic speed controller and direct belt drive from motor to spindle, provide far better torque over a wider speed range (even at low speeds) thus enabling the elimination of the gearbox and resulting in a quieter machine. In addition, fewer wear parts are engaged, which makes the machine generally low in maintenance.
As a result, a maximum of torque and power is transmitted to the workpiece, especially in the low speed ranges. This considerably facilitates parting and tapping.

The covered lead screw makes it possible to produce threads with gradients of 0.25 to 3.0 mm. The lead screw enables to select an automatic feed in the longitudinal and in the cross direction, whereby an optimum and clean work result can be achieved.

A 100 mm three-jaw chuck is supplied as standard.

The bench lathe SC4 is ideal for the production of workpieces of metal, non-ferrous metals and plastics up to a diameter of approx. 100 mm. Also the processing of higher-strength materials, e.g. stainless steel or steel up to approx. 1000 N / mm2 tensile strength is possible without any problem.

You will find suitable accessories for this machine further down on this page.






Technical specifications


Nominal voltage230 Volt~ / 50 Hz
Motor output power1000 W
Swing over bed105 mm
Workpiece diameter over bed210 mm
Distance between centers510 mm
max. workable outer diameter
Hole trough spindle
max. shaft diameter turning tool10 x 10 mm
Capacity self-centring 3 jaw scroll chuck app 100 mm
Jaws internal- / external
Hole through chuck
Concentricity (with chuck)
Cross side travel100 mm
Compound travel70 mm
Range of thread metric version0,25 - 3 mm (17 threads pitches)
Range of thread imperial version8-24 TPI (10 threads pitsches)
Sleeve travel
Spindle speedvariable speed 100 - 2.000 min-1
Feeding speed lead screw0,25 - 3,0 mm/U
Spindle taper / Tailstock taperMT 3 / MT 2

Overall dimension (LxWxH)

Packing Size (LxWxH)

910 x 360 x 400 mm

1060 x 710 x 510 mm

Weight (Net/Gross)105/135 kg



Scope of delivery:

  • 100mm three jaw chuck

  • External jaws
  • Internal jaws
  • Key for chuck
  • Change gear set (metric)
  • MT2 center
  • Wrench set
  • Manual





Shipping weight:135,00 Kg
Product weight:105,00 Kg
